Custom Die Cut Window Boxes That Let the Product Do the Selling
There is a moment on a retail shelf or a market stall when a customer stops, looks at a box and decides without consciously deciding. A window box earns that moment more reliably than almost any other packaging format because it removes the uncertainty that sits between a shopper and a purchase. They can see the actual product. The colour, the texture, the craftsmanship, the size. No imagination required, no disappointment on arrival, no doubt about whether what they are buying matches what they want.
At Hexa Custom Boxes, we make custom die cut window boxes for brands that understand the commercial value of visibility. Cosmetics, confectionery, candles, soaps, artisan food, gifting and pet treats, if your product is worth looking at, it is worth showing. We build the box around your product’s dimensions, specify the window and film to match the product and sales channel, and print everything in bold, precise colour that frames the view rather than competing with it.
What Makes a Window Box Different From a Standard Printed Box
The die cut is the precision-cut aperture in the box panel. It can be any shape: a clean rectangle, a circle, an arch, a custom shape that reflects your brand or product category. The window itself can be left open, covered with a clear film, or left as a frameless cut-out that allows direct tactile access and scent release. The combination of the aperture shape, the film choice and the print around it is what creates the shelf impact, and getting all three right is where the real design thinking lives.
Window Film Options: The Choice That Matters More Than Most Brands Realise
This is the decision most UK packaging suppliers gloss over with a generic mention of “PVC or PET.” In practice, the film choice affects food safety, recyclability, your Plastic Packaging Tax position and how the product looks under retail lighting. Here is the honest version.
| Film Type | Clarity | Food Contact | Recyclable | Plastic Packaging Tax | Best For |
|---|---|---|---|---|---|
| PET film | Excellent | Yes, food-grade | Yes (separate) | Applies if over threshold | Confectionery, cosmetics, premium retail |
| PLA film | Very good | Limited, check grade | Industrially compostable | May apply | Eco brands, dry products only |
| Acetate | Good | Not always certified | Limited | Applies | Non-food, lower-cost applications |
| Open die-cut (no film) | Direct view | N/A, product exposed | Fully recyclable | None | Soaps, candles, food-safe products, eco-first brands |
The open die-cut is not just the budget option. For candles, soaps, botanical products and certain food items, an open window is the premium choice, because it lets the product’s fragrance drift through the aperture, which is a purchase trigger no film can replicate. It also makes the whole box fully kerbside-recyclable, removes any Plastic Packaging Tax consideration from the window component, and aligns with the growing expectation from UK retailers that packaging is genuinely plastic-free rather than plastic-reduced.
The Plastic Packaging Tax Question Nobody Else Is Raising
A window film is plastic. On a small box with a large window, the plastic film can represent a meaningful proportion of the total packaging weight. If the plastic content of your finished box exceeds 30 per cent by weight and contains less than 30 per cent recycled content, it may fall within scope of the UK Plastic Packaging Tax. This is not a theoretical concern for brands shipping volume. We calculate this at specification stage and let you know before you commit, so you can make an informed choice between film types rather than discovering the liability after the first production run.
Window Shape and Placement: The Engineering Behind the Aesthetics

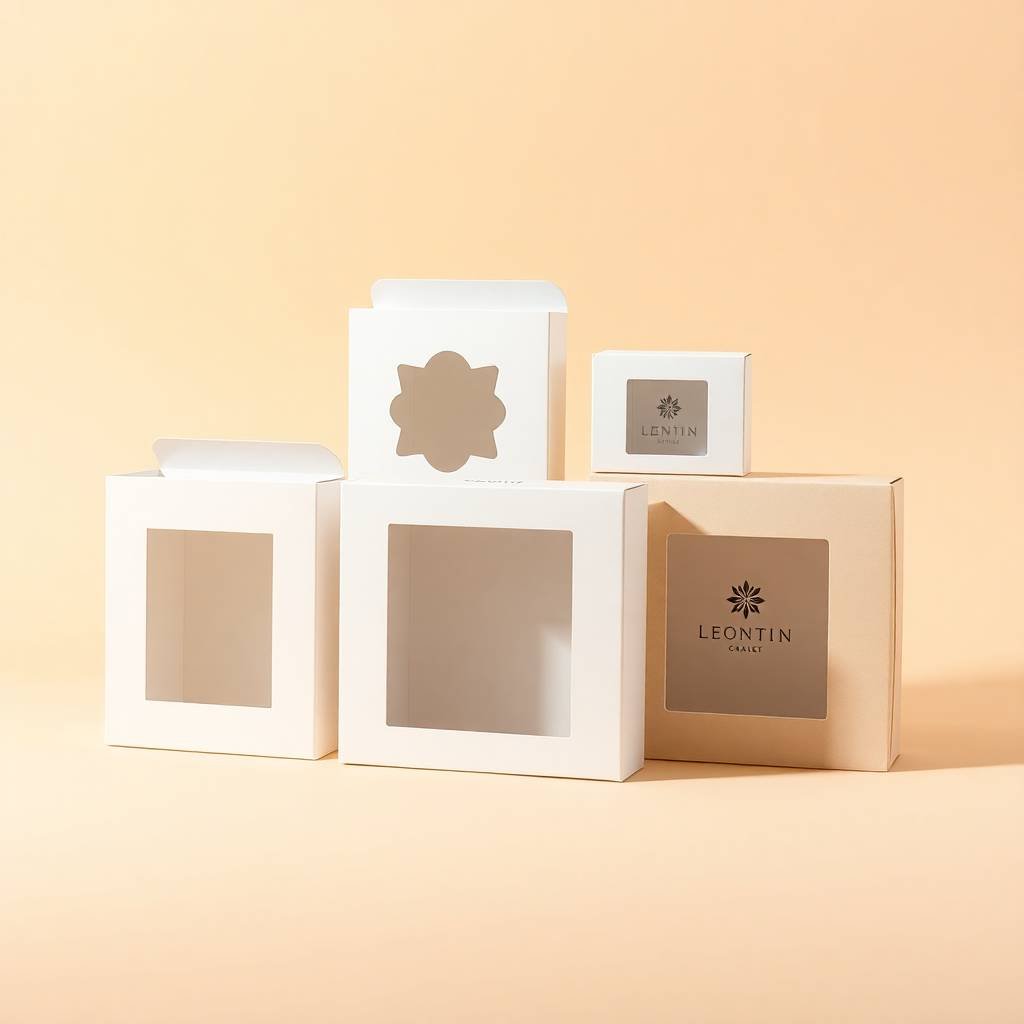

Window shape is where most brands focus their creative energy, and rightly so. A paw-print aperture on pet treat boxes, a heart on Valentine’s confectionery, a leaf on botanical soaps, a hexagon on artisan honey: the shape signals the category and the brand personality before the customer reads a single word. We cut bespoke shapes as standard, with no additional die charge for the aperture shape itself.
What fewer brands consider is window placement, and this is where structural integrity either holds or fails. A window cut through a fold line weakens the crease and causes the box to lose its shape over time. A window too close to a glued edge creates stress that pulls the joint apart under load. A window that takes up more than around 60 per cent of a panel reduces the structural stiffness of that wall significantly. We engineer the window position as part of the dieline rather than treating it as a graphic decision, because a beautiful window in the wrong place produces a box that does not survive the supply chain.
Board and Specification Guide
The board weight needs to carry the structural load of the box wall even after the window removes part of it. As a rule, a windowed box needs to be specified at least one weight tier heavier than the equivalent solid-panel box.
| Application | Board | Typical Weight | Window Notes |
|---|---|---|---|
| Soaps, candles and light retail | White SBS or kraft | 350gsm to 400gsm | Open or PLA window recommended |
| Confectionery and bakery | White SBS or kraft | 350gsm to 400gsm | PET film for food contact compliance |
| Cosmetics and skincare | White SBS | 350gsm to 450gsm | PET or open depending on product |
| Heavier or fragile gifts | Folding boxboard (FBB) | 400gsm to 450gsm | PET film, cold-glue mounted |
| Premium gifting and rigid feel | Greyboard or rigid | 1.5mm to 2mm | PET or open, depends on product |
Print and Finish That Frames the Window
A window box print job has one guiding principle: the print should frame the product inside, not compete with it. Bold colour or strong brand identity around a clean aperture draws the eye exactly where you want it. The window becomes the focal point and the print becomes the context.
We print in full CMYK with Pantone spot-colour matching, inside and out, and offer the finishes that genuinely add to the effect.
Matt lamination paired with a clear PET window creates a visual contrast that makes the product inside appear to float. Soft-touch lamination makes the box worth holding, and customers who hold the box buy more often. Foil stamping in gold or silver around the window edge is one of the most effective premium retail signals available on a folding carton. Spot UV over the brand name or a graphic element while the board stays matt is a finish that photographs beautifully for e-commerce listings, which matters because the box image on a product page drives the same trust signals as the physical window on a shelf.
Window Boxes in E-Commerce: The Return Rate Argument
Window packaging is most often discussed in the context of physical retail, but it carries a commercial argument for e-commerce that no UK competitor currently makes. When a customer buys online, they form an expectation of the product from photography. If the product does not match that expectation on arrival, they return it. A window box on an e-commerce product listing shows the actual product through the window in the product photography, setting a precise and honest expectation. Brands that have switched from opaque to window packaging consistently report a reduction in returns from customers citing appearance or size mismatches. If your returns rate is a problem and your product is something customers need to see to trust, a window box is a packaging decision with a measurable commercial return.
The Commercial Case: Visibility Packaging Without the Premium Bill
No die and plate charges. A custom die cut window box needs a cutting die for the box shape and a separate aperture die for the window, and most suppliers bill both to you as set-up costs. We absorb them, so a distinctive shape with a custom window aperture costs no more to set up than a standard rectangular box.
Minimums from just 100 units. You do not need a large production run to access bespoke window packaging. Start at 100, scale to bulk wholesale volumes as your retail distribution grows, and test new window shapes or seasonal variants without committing to thousands of units.
Made in the UK, 8 to 10 working days. Printing and finishing locally means a reliable turnaround you can plan a product launch or a retail listing around.
Sustainability Worth Specifying Correctly
The most sustainable window box option is an open die-cut on recycled-content or FSC-certified board, printed with water-based inks. No plastic film, no adhesive, no PPT consideration, fully kerbside-recyclable. For brands that need a covered window for product protection, PET is recyclable where the film can be separated from the board, and PLA is industrially compostable. We will tell you exactly what the end-of-life position of your chosen specification is and what it means for your EPR reporting, because a clear answer on recyclability is now something retailers, procurement teams and consumers increasingly require before placing an order.
How to Place an Order
Simple from start to finish, with our 24/7 support team at every step.
- Request your quote. Tell us your product dimensions, window shape preference, film choice and quantity. We will return a no-obligation quote the same working day, including honest guidance on PPT implications if relevant.
- Get free design support. Share your logo and artwork. Our in-house designers build a custom dieline, engineer the window placement for structural integrity, and apply your design ready for print, at no cost.
- Approve your proof. We send a digital proof before anything goes to press. A physical sample is available on request and strongly recommended for window boxes, so you can see exactly how the product looks through the aperture before committing to a full run.
- We print and deliver. Your order is made here in the UK and dispatched within 8 to 10 working days of artwork approval.
Order Your Custom Die Cut Window Boxes Today
Give your product the visibility it deserves, with a precision die-cut aperture, a film or open window specified correctly for your product, and print that frames the view rather than hiding behind it. With no die or plate charges, minimums from 100 units and a dependable 8 to 10 working day turnaround printed right here in the UK, custom window boxes that genuinely perform have never been more accessible.
Get Your Free Quote | Free Design Support | Speak to Our 24/7 Team
Tell us your product, window preference and quantity and we will have a quote back the same working day, with honest guidance on film choice, PPT implications and structural placement built into every conversation.
Why UK brands choose Hexa Custom Boxes: No die or plate charges. Low MOQs from 100. 8 to 10 day turnaround. Premium UK printing. Open, PET and PLA window options. FSC and recyclable stock. Free design service and 24/7 support, every order.
